Pneumatic Amplifier Module

Pneumatic

Pneumatic Amplifier Module

P-13

In Stock

Pneumatic signal amplifier module for amplifying pilot pressure or flow signals. It boosts tiny control pressure into high output pressure, improves the response speed and driving capacity of pneumatic systems, and is particularly suitable for control applications involving long pipelines or large-capacity actuators.

Contact Now Return to Products

Features

Pressure signal amplification
Flow boosting
Spark-free operation
Compact design
Maintenance-free

Model： P-13

Max input： 1.0 MPa

Max output： 0.8 MPa

Amplification： 1:10

Thread： M5 / G1/8

Pneumatic Amplifier Module - 1

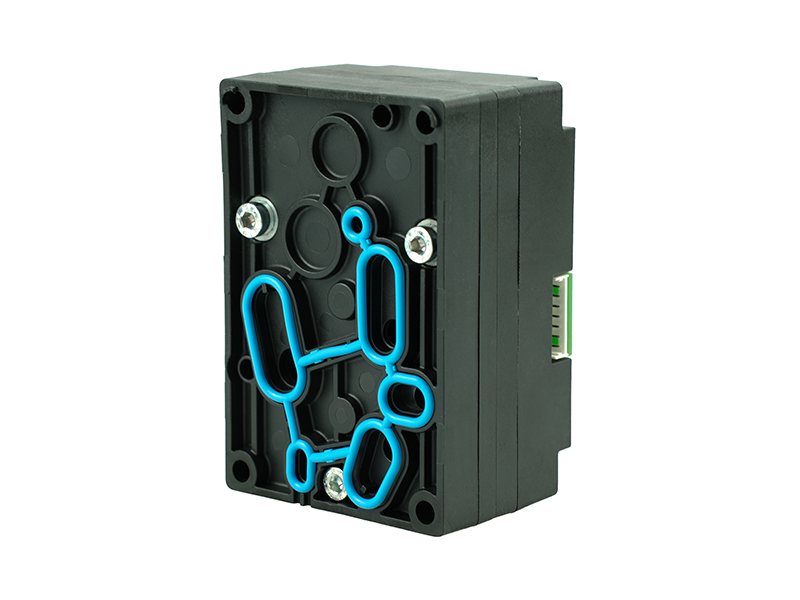

Pneumatic Amplifier Module - 2

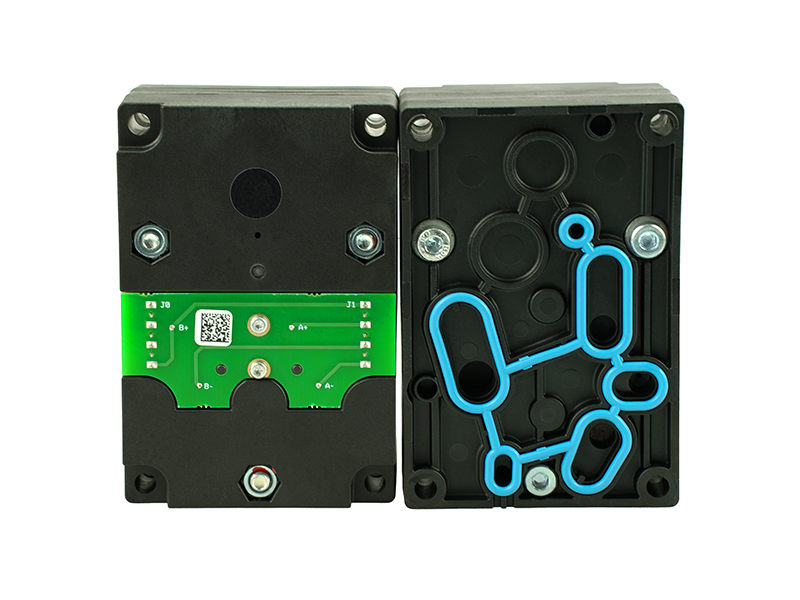

Pneumatic Amplifier Module - 3

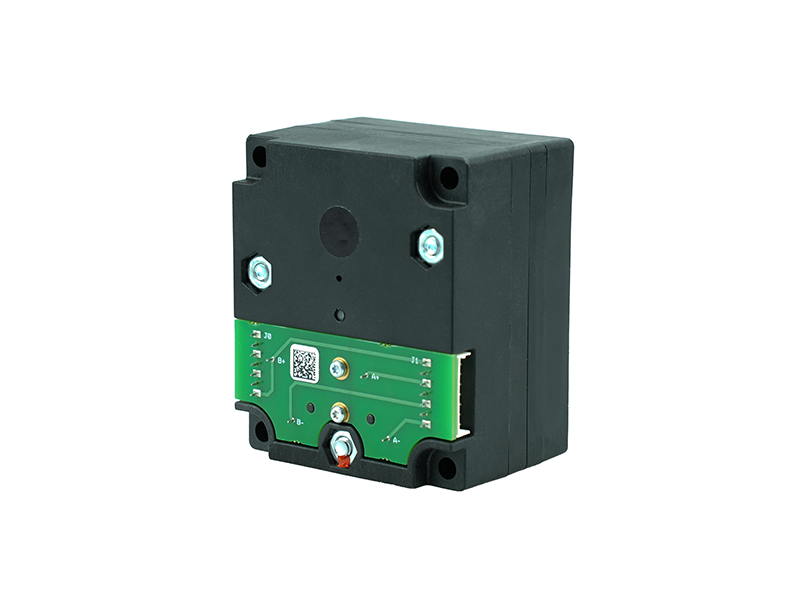

Pneumatic Amplifier Module - 4

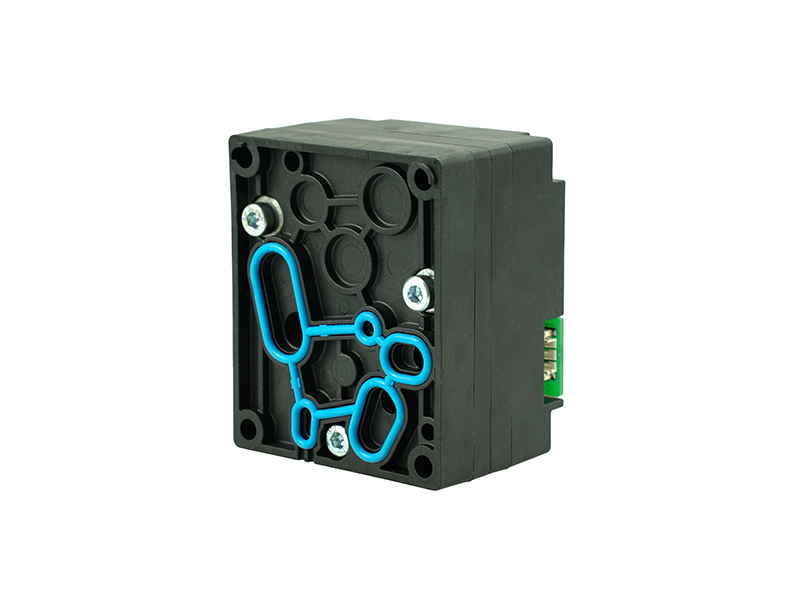

Pneumatic Amplifier Module - 5

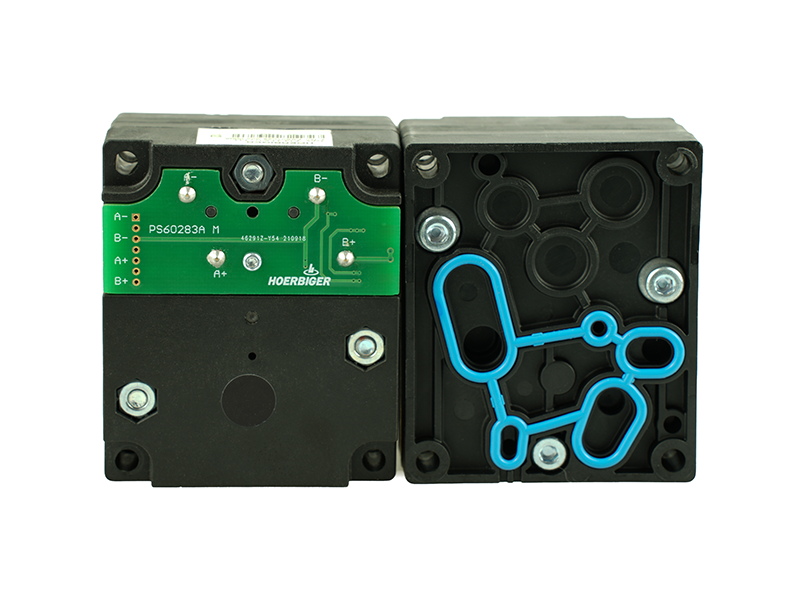

Pneumatic Amplifier Module - 6

Typical Applications

Pneumatic Amplifier Module is widely used in the following fields:

Large Cylinder Drives
Long-Distance Control
Explosion-Proof Areas
Chemical Process Control
Pneumatic Logic Circuits

Downloads

Please contact us for product details and technical documents.
