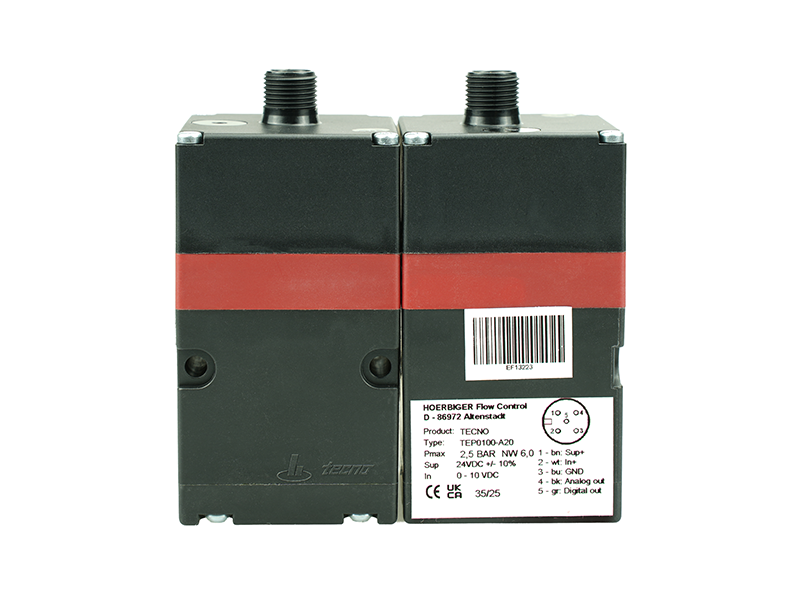

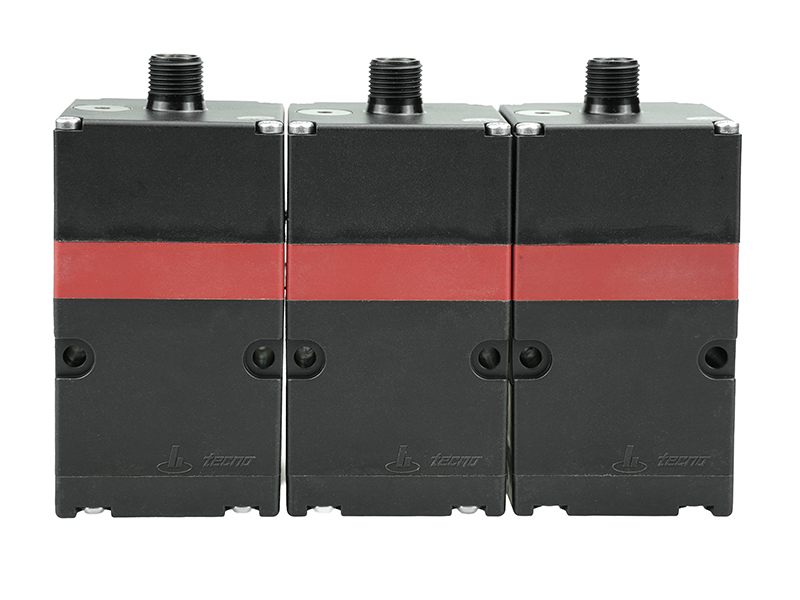

Tecno plus vakuum · PRE-U2 / PRE-I2

In Stock

Tecno plus vakuum provides electronic closed-loop control from vacuum to positive pressure in A20 and A70 variants. Port 3 connects to an external vacuum source and port 1 to compressed air. It provides analog setpoints, pressure feedback and a pressure-reached output. The minimum controllable pressure depends on the vacuum supply and pressure differential.

Contact Now Return to Products

Features

A20 / A70 vacuum-to-positive-pressure variants
External vacuum at port 3; compressed air at port 1
0-10 V or 4-20 mA setpoint, depending on model
Analog pressure feedback and pressure-reached output

General specifications

Model branchesPS120100 / PS120101

Power supply24 V DC ±10%

Maximum nominal power0.8 W

Current (excluding digital output load)30 mA

Voltage setpoint (PS120100)0-10 V

Current setpoint (PS120101)4-20 mA

Analog pressure feedback0-10 V; ≤1 mA

Repeatability / hysteresis<0.2% p2max

Linearity (+20 °C)<0.5% p2max

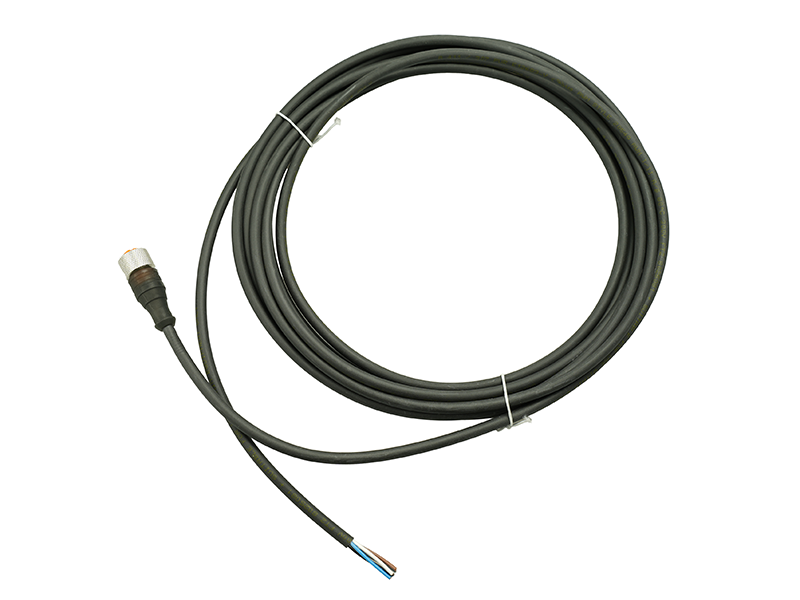

Electrical connectorM12×1, 5-pin

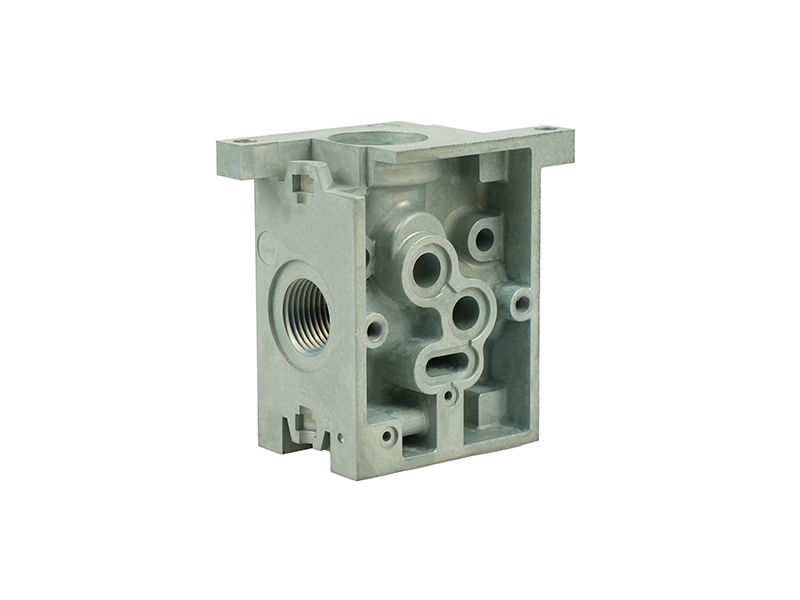

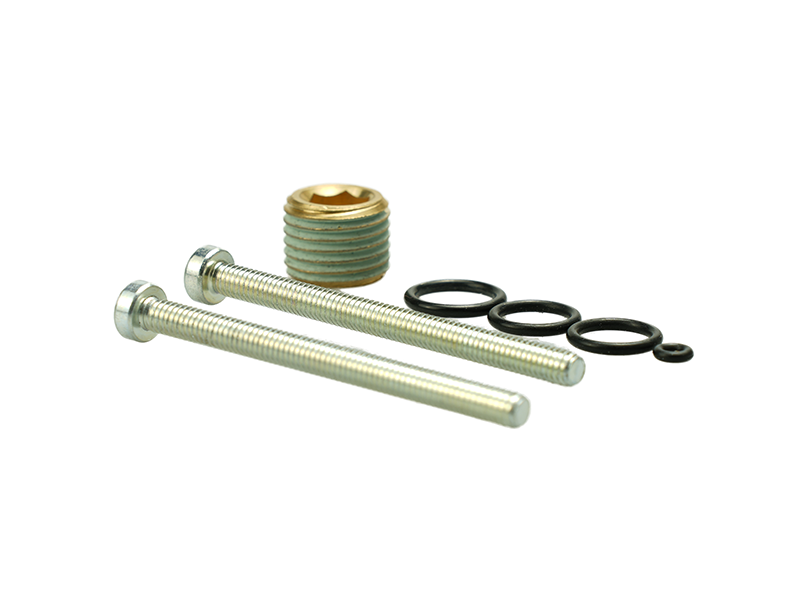

Base plate ports / boreG1/4 / 6 mm

Ambient / medium temperature0…+50 °C

Storage temperature-20…+60 °C

Protection (connection conditions apply)IP65*

↔ Swipe horizontally to view all specifications

Pressure variants
Pressure code	Nominal pressure range	Adjustable output range	Supply pressure p1
A20	-1…+1 bar	-0.9…+1 bar	1.5-2.5 bar
A70	-1…+6 bar	-0.9…+6 bar	1.5-10 bar

Conditions and selection notes

All pressures are gauge pressures. With a vacuum supply of p3 = -1 bar, the minimum controllable output is -0.9 bar. The lower control limit must satisfy p2min ≥ p3 + 0.1 bar and depends on the vacuum supply and minimum pressure differential.
Port 3 serves both exhaust and vacuum connection. Mechanical vacuum pumps may require a bypass exhaust valve; confirm the arrangement for your system.
Repeatability, hysteresis and linearity are relative to the maximum output pressure p2max of the selected variant. Linearity is specified at +20 °C.
Pressure reached is a digital switching output indicating that pressure is within the setpoint tolerance. Analog pressure feedback is 0-10 V. M12 pins: 1=24 V, 2=setpoint, 3=GND, 4=analog feedback, 5=digital status.
* IP65 requires a connected plug and correctly connected main exhaust / vacuum port 3 and pilot exhaust port 13.
Order PS120100 (voltage) or PS120101 (current), with pressure code A20 / A70 and the suffix for the required base plate and cable.
